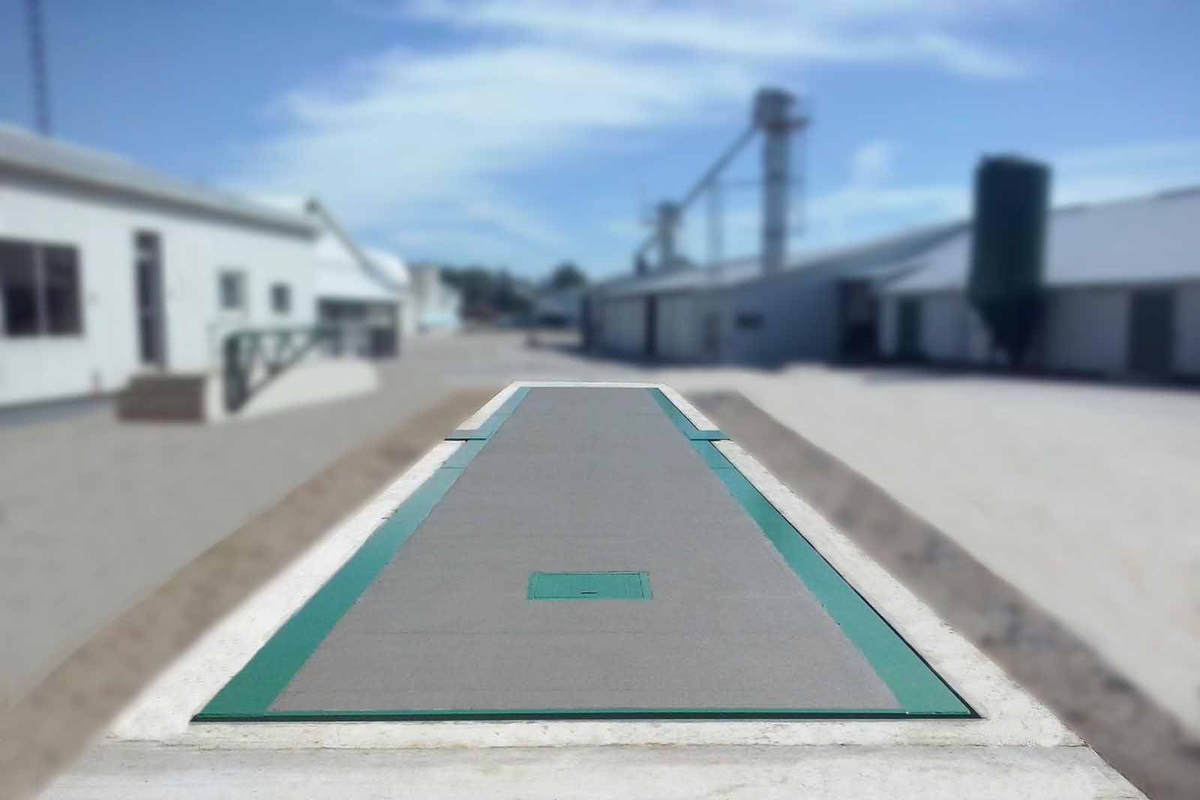

Ramara Concrete Decks
The Ramara concrete deck truck scale offers a higher resistance to corrosion and provides better traction in inclement weather conditions. For situations where a quick installation is necessary, consider our Steel Decks.
The concrete deck design boasts 14-inch wide-flange main beams and 6-inch wide-flange cross members. Galvanized deck pan and rebar placed on top of the cross members allows for 8-inches of concrete to be poured above the neutral axis of the weighbridge. The concrete above the neutral axis is always in a compression state eliminating bending which can cause cracks in the deck. The heavy-duty wide-flange beams below handle all forces, extending the life of the scale. Concrete decks are more resistant to corrosion in wet conditions and provide improved traction.
Features/Specifications
- 200,000 lb gross weight capacity
- 110,000 lb concentrated load capacity (CLC)
- 110,000 lb dual tandem axle (DTA)
- 88,000 lb NTEP certified load cells
- Side access to load cells and junction box
- Self-checking load cell mount
- Single, stainless steel junction box
- Heavy-duty steel guiderails
- All components are protected high above weighbridge bottom
- All cabling in conduit under top flange of I-beam
- Measurement Canada approved
Options
- Custom sizes
- Custom color
- Manhole kit for pit installation
